Asynt Protective Equipment (APE) Barrier System

The Asynt Protective Equipment (APE) Barrier System are revolutionary composite temporary vehicle barriers. We recognized the need for a safer and more eco-friendly alternative to the traditional use of bulky and brittle concrete blocks for traffic. Asynt Solutions took the 1950's designed "jersey barrier" and re-invented it. This patent pending technology provides safety features, benefits and advantages for commuters, contractors, and the planet.

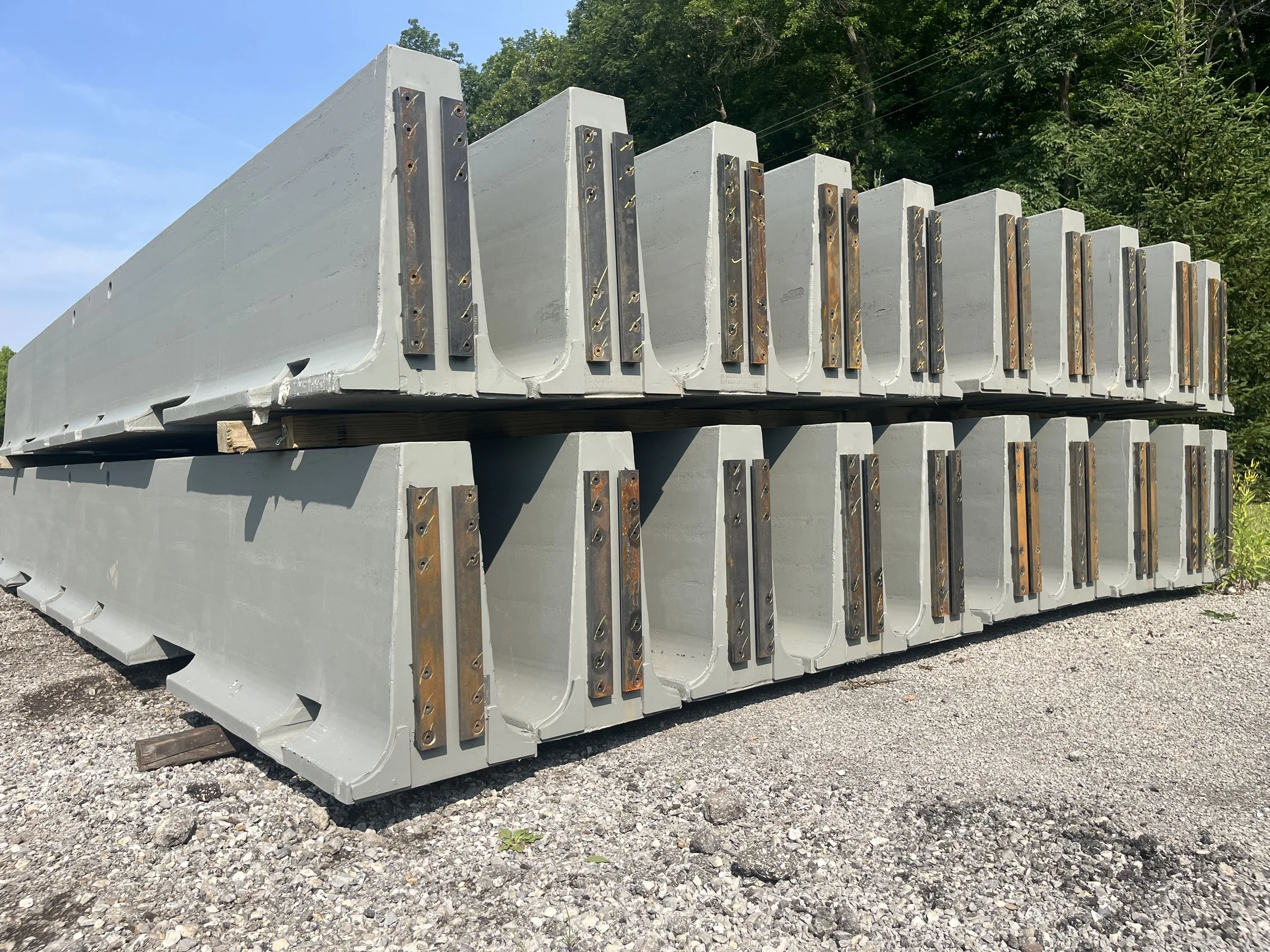

THE STACK UP

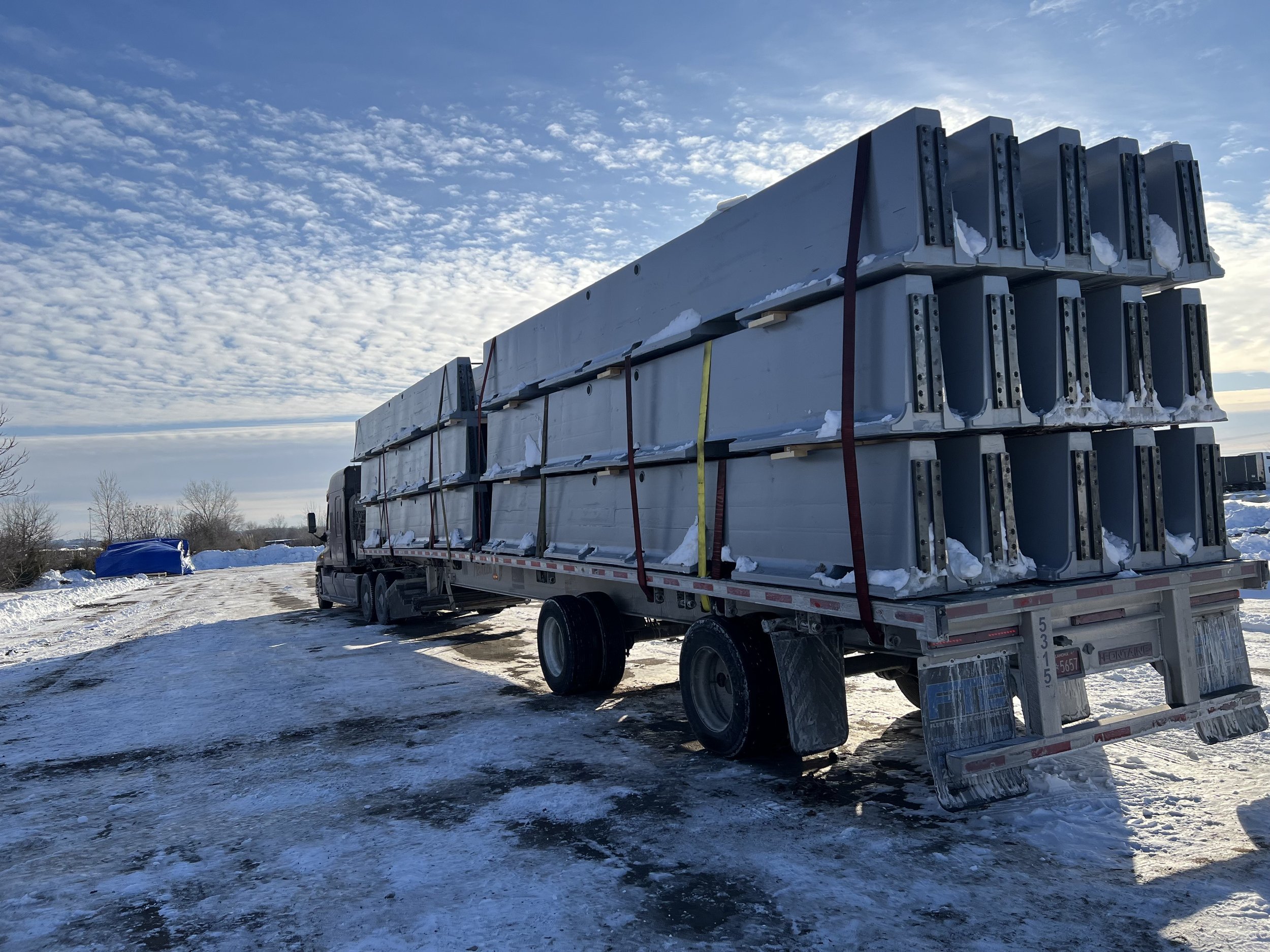

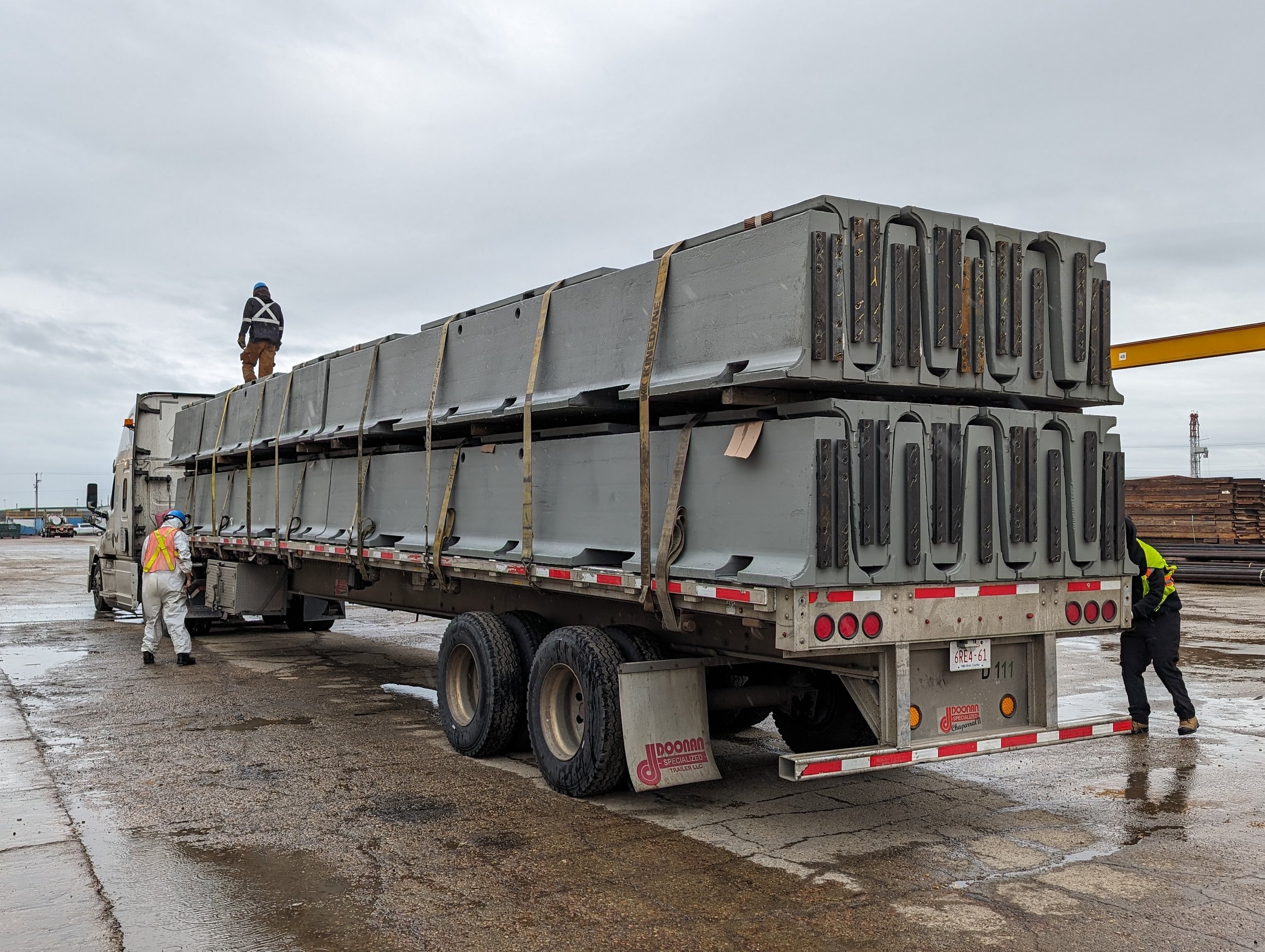

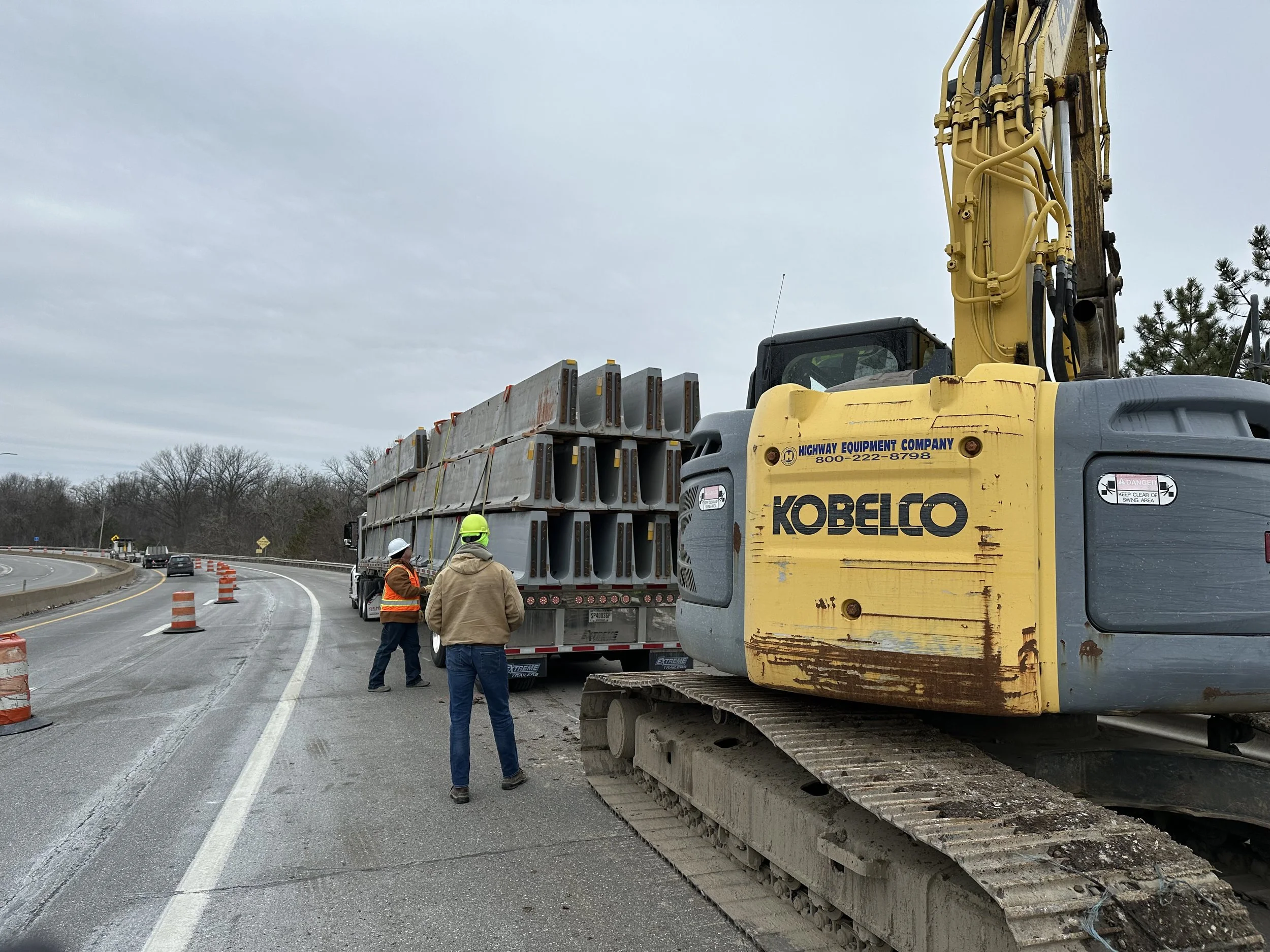

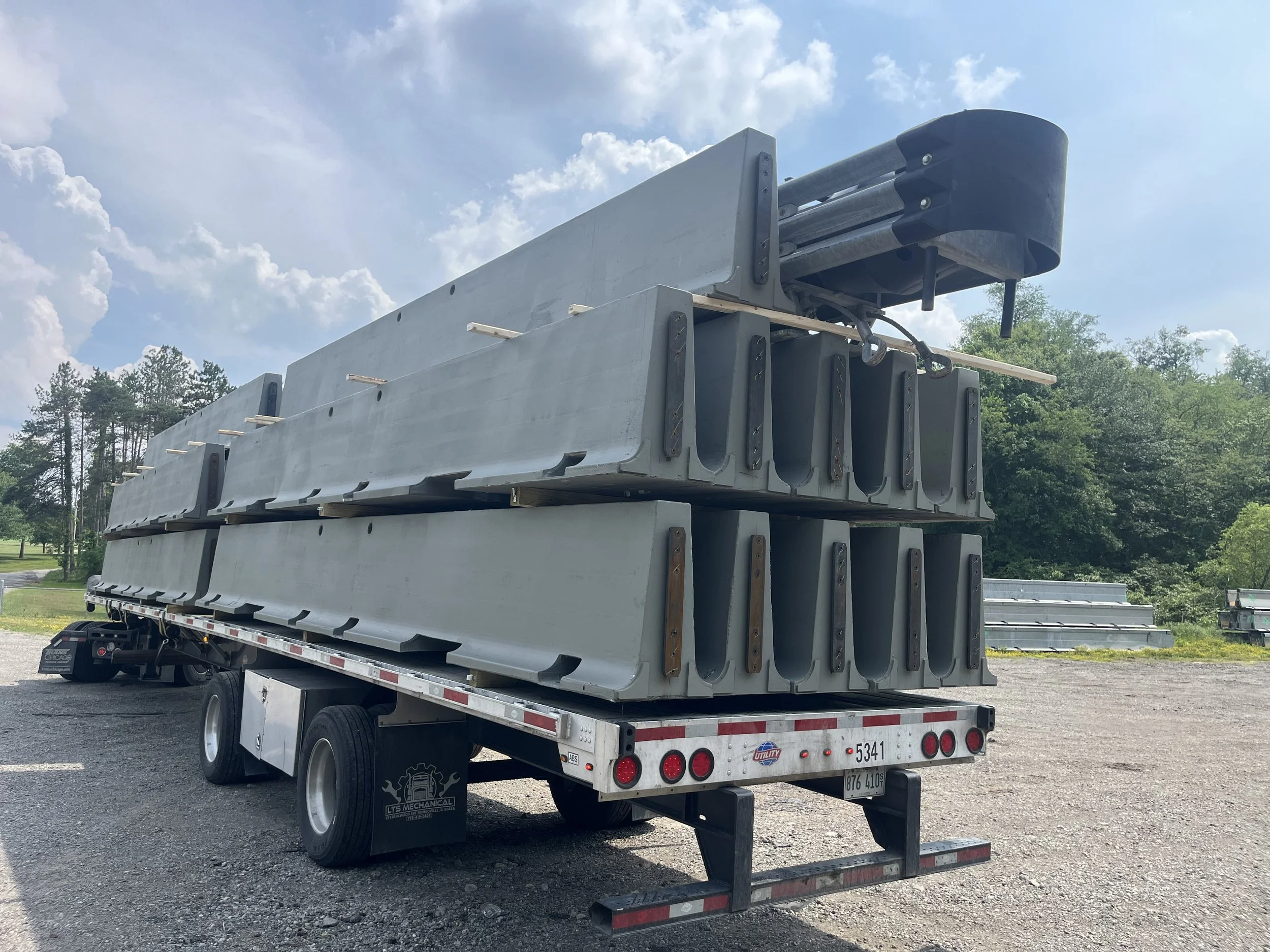

864 LF (43,200 lbs) per truck when inverted stacking
720 LF per truck without inverting

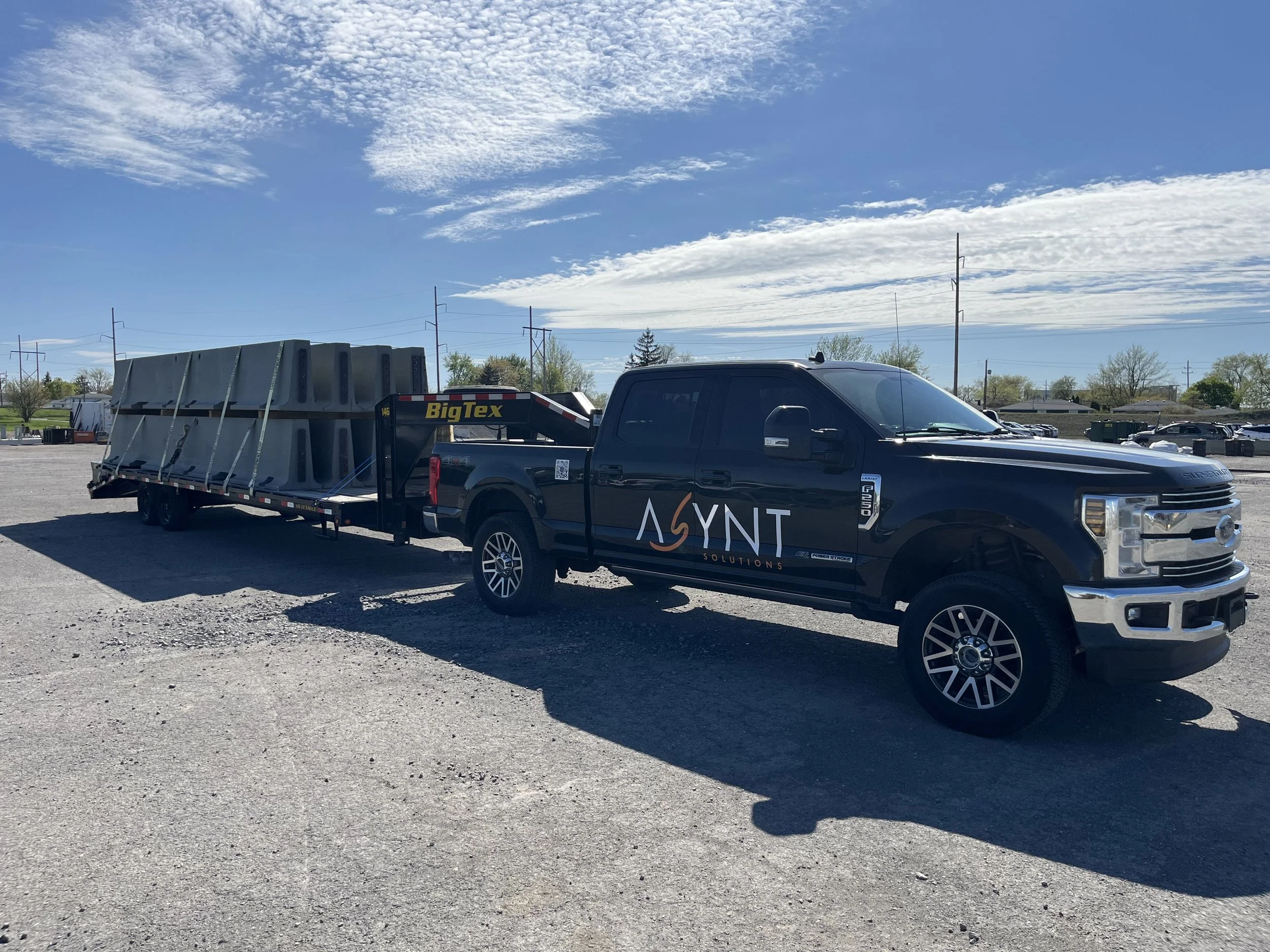

360 Linear feet on gooseneck trailer

Freight

50 lbs/lft
1,200 lbs per 24-foot long barrier

Weight

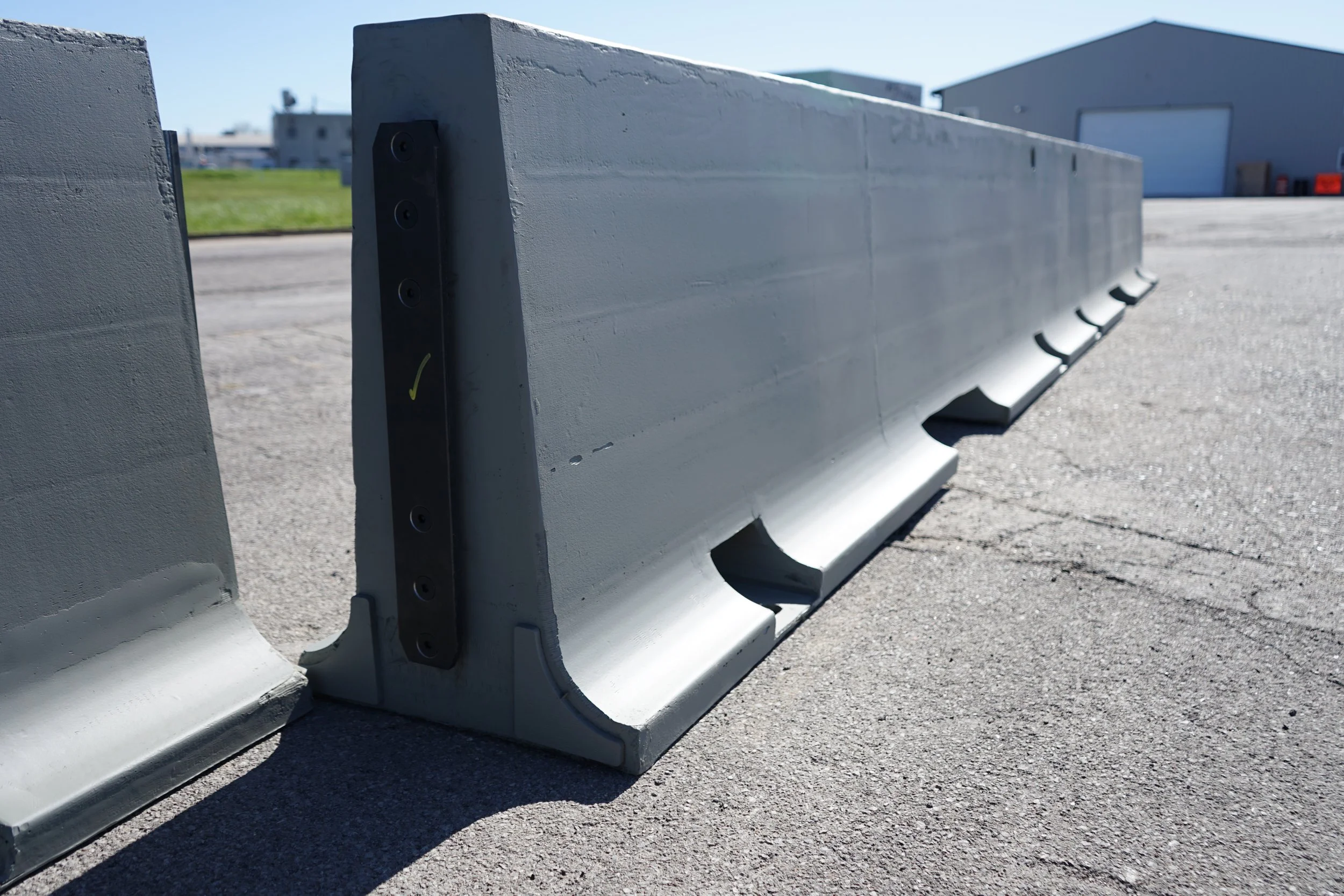

Base Width: 20"
Height: 32"
Standard Length: 24'
Standard Radius Capability: 336'

Dimensions

Material

Fiber Reinforced Polymer

THE BENEFITS

Increased transportability
Freight, equipment, and operator cost savings
Chemically inert to road salt, does not rust nor corrode
Non brittle material, resilient
Simple to use design

IMPROVED ECONOMICS

Greater energy absorption
Reduced dead loads on roads and bridges
Reduced surface pinning

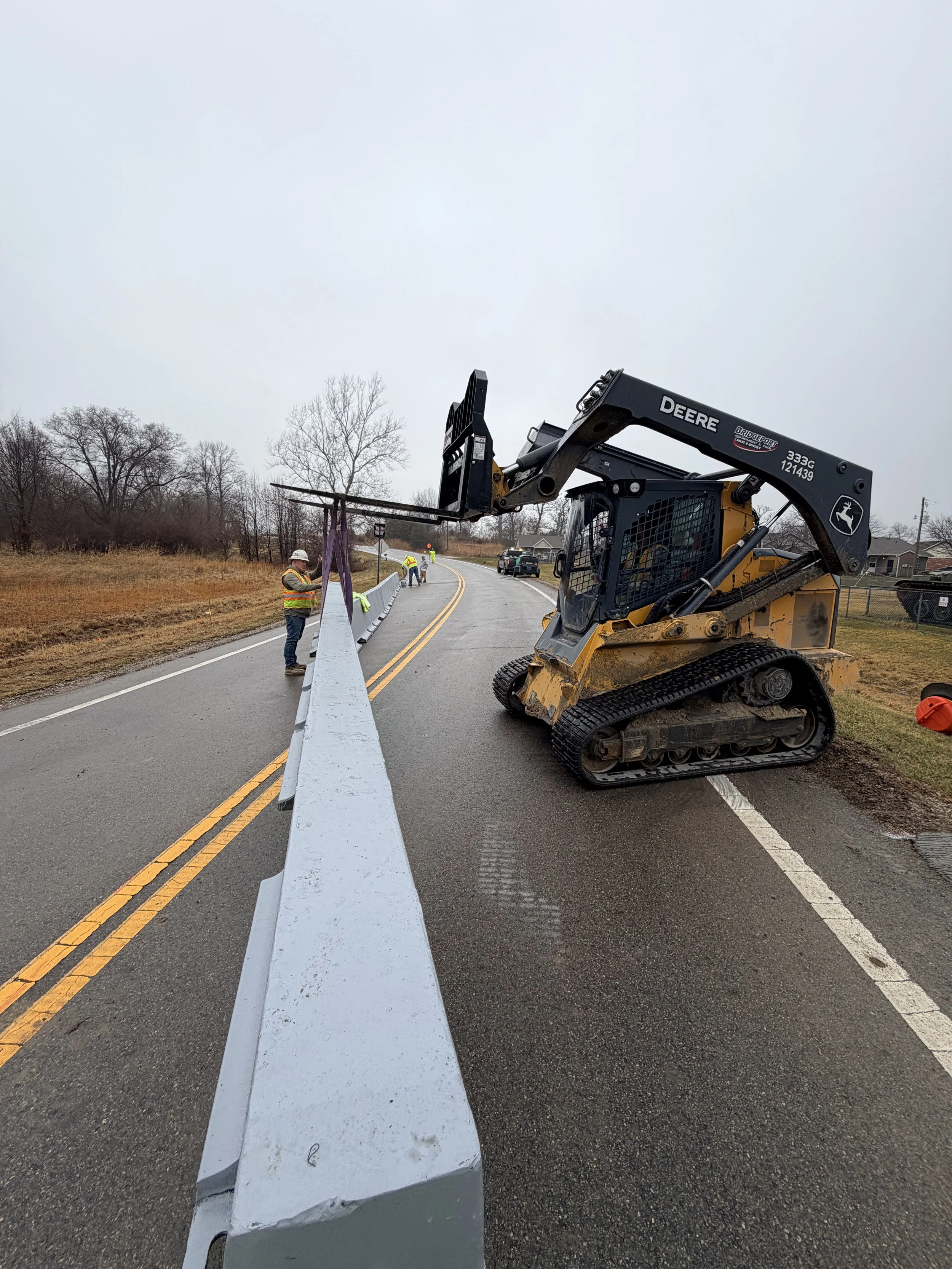

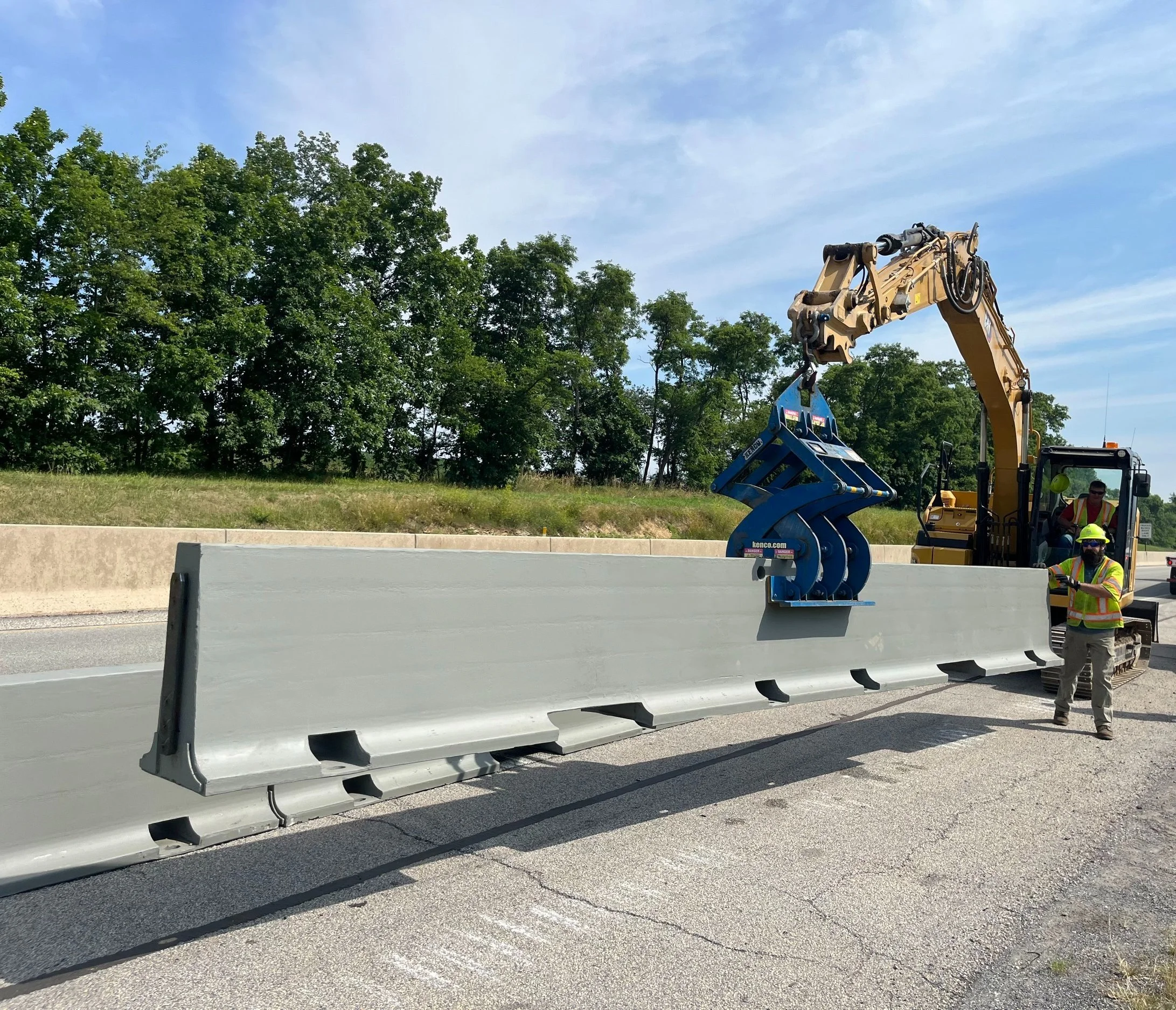

Rapid installation and removal

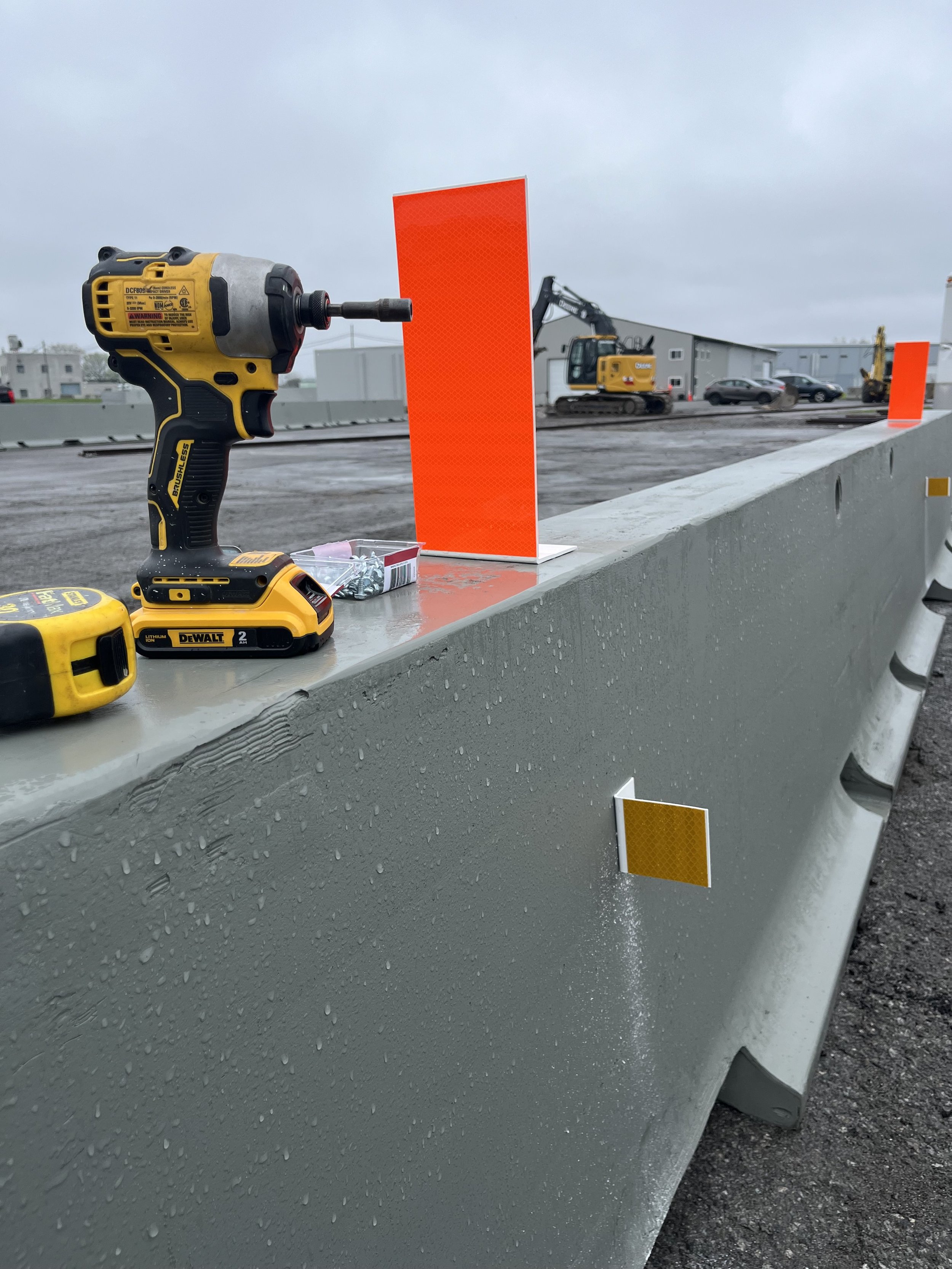

Increased visibility, various color options

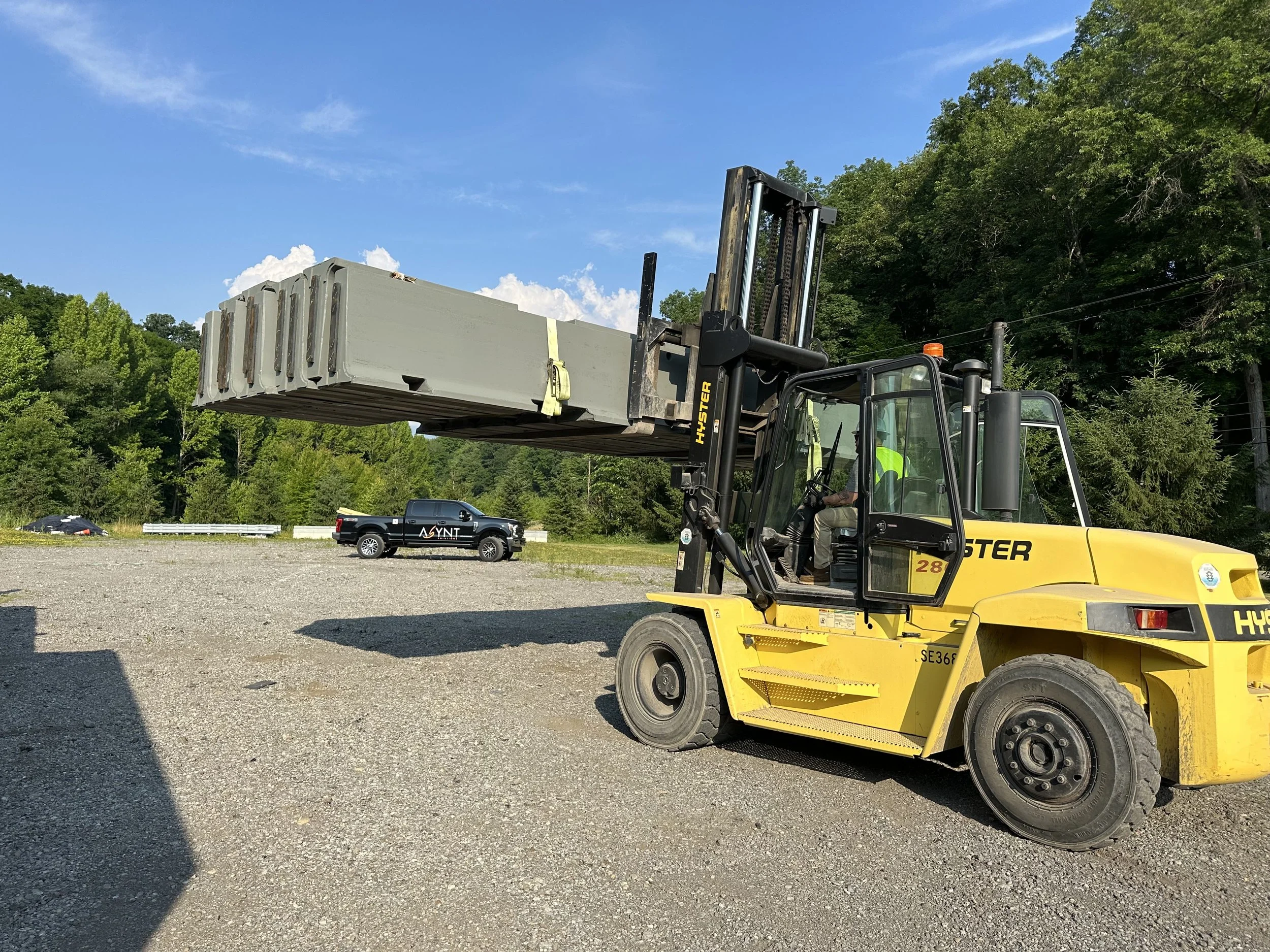

Ease of handling and rigging

INCREASED SAFETY

80% reduction in carbon emissions
30+ year life expectancy

ECO-FRIENDLY

Two pickup trucks, traveling at a high speed of 62 MPH, collide with portable concrete barriers in the top two impact videos. The violent reactions witnessed in these videos make it clear that the outcome is far from ideal. However, in the bottom simulation video, we are proud to showcase the remarkable capabilities of the APE Barrier System. This innovative system not only contains and redirects the vehicle, (also traveling 62 MPH), it absorbs an impressive amount of energy. The implications of this technology are significant. With the APE Barrier System in place, drivers maintain better control of their vehicles during impact. The forces experienced by the driver are substantially reduced, ensuring their safety on the road. Moreover, the system minimizes the risk for the dedicated men and women tirelessly working on the other side of the barrier wall, ensuring their well-being. When safety is a priority for your family and those working on our highways, there is no room for compromise.
